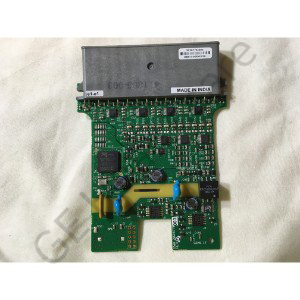

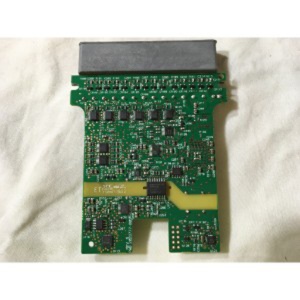

Printed circuit Board (PCB) Assembly Cam-14 v2

2028778-003
2028778-001 900995-004
New
Diagnostic ECG
GE HealthCare
GE Medical Systems Information Technologies
GE HealthCare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Rigidity and flexible
  • Good structural design
  • Higher reliability and efficiency
  • Great maintainability

Product Overview

The Printed Circuit Board (PCB) Assembly Cam-14 HD is used in Diagnostic Electrocardiogram (ECG) machines. The CAM-14 acquisition module is intended to acquire the analog ECG signal, digitize it and transmit the signal to a host unit. The PCB (Printed Circuit Board) is assembled in the CAM-14 HD. The circuitry is designed to protect the host unit against the effects of cardiac defibrillator discharge to ensure recovery. CAM-HD module has 3 software pieces that need to be programmed to flash memory during the board assembly. Two of these pieces are programmed to the Atmel AT45DB041 Dataflash (U113), and the third to the on chip flash memory of the AT Tiny2313 (U121) chip. The PCB consists of IC’s, diodes, resistors, connectors, capacitors, ferrite bead, LED and transistors. The PCB is mounted using the provided screws. Cables are connected to the main PCB. Fasteners are used as connections to ground panes on PCB. The ECG signal input is isolated and defibrillation-proof only in conjunction with CAM14. It is being used in CASE, MS CARESCAPE™ Monitor B850, CardioSoft, UL Vivid S6, Stress Other, UL Voluson P8, Premium Carts Other, CT SYTEC 8000 1-Slice, MAC 5500 HD, ARC Aisys CardioSoft, CT CTe 1 – Slice, Supplies and other applications.

  • Additional Features

    • RoHS compliant

    Compatible Products

    CAM 14

    CAM 14

    CAM 14 v2

    CAM 14 v2

    CAM 14 v2 (Product Code RNC and SK9)

    CAM 14 v2 (Product Code RNC and SK9)

    Equivalent Part :

    Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

    Equivalent partPart Details
    2028778-001 PCB ASSY CAM14 V2
    900995-004

    900995-004
