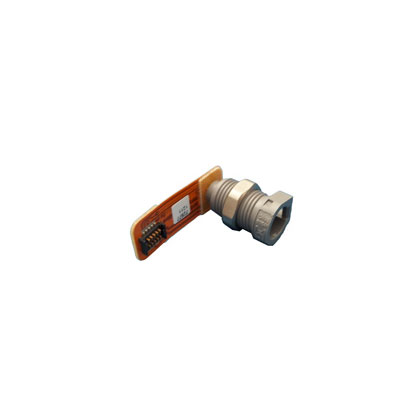

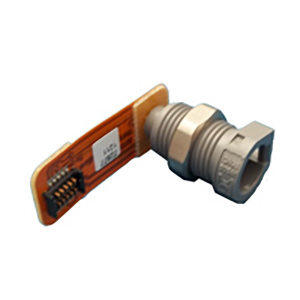

Printed circuit Board (PCB) Cam 14 Cable Interface Connector

801502-001
New
Diagnostic ECG
GE HealthCare
GE Medical Systems Information Technologies
GE HealthCare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Stable across a wide range of temperatures
  • UL approved
  • Performs high resolution ECG data acquisition
  • Circuitry designed to protect the host unit against the effects of cardiac defibrillator discharge to ensure recovery

Product Overview

The PCB Cam 14 Cable Interface Connector is a component in the acquisition module assembly. The acquisition module performs high resolution ECG data acquisition for use with host equipment. The module is intended to acquire analog ECG signals and digitalizes it and transmit the signal to a host unit. It is used in ECG analysis and exercise systems. The cable interface connector contains of a 9-Pin connector, flex circuit and a connector plug to form a circuit. The main PCB contains a cable interface flex which connects the switch to the PCB. A patient monitor measures and records and displays various parameters of a patient. It is housed in a single package and it contains an external power supply, a Data Acquisition System (DAS), a processor, a speaker, a handle subassembly and a thermal printer as components. The minute ECG signals from the patient’s skin are received by the electrodes and sent to the acquisition module via lead wires. The acquisition module then amplifies, digitalizes, and performs some processing on the signals. This whole process is controlled by a microprocessor in the acquisition module.

  • Additional Features

    • Quick at responding and communicating
    • Can be removed with a soft cloth moistened with water and a mild detergent and can be dried later
    • Durable
    • Safe to use
    • RoHS compliant

    Compatible Products

    CAM 14

    CAM 14

    CAM 14 v1

    CAM 14 v1

    CAM 14 v1 (Product Code RMF)

    CAM 14 v1 (Product Code RMF)

    CAM 14 v2

    CAM 14 v2

    CAM 14 v2 (Product Code RNC and SK9)

    CAM 14 v2 (Product Code RNC and SK9)

    CAM HD (Product Code RNB)

    CAM HD (Product Code RNB)
