Converter USB to RS-422/RS-485 Tool

1505-8586-000
New
Respiratory Care
GE Healthcare
Datex-Ohmeda
GE Healthcare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Adds one optically isolated RS-422, or RS-485 serial port by connecting to USB
  • Installs as standard Windows COM port
  • FIFO: 128 byte transmit buffer 384 byte receive buffer
  • Serial port speed up to 1M bps



Featured Bundles

  • 5004SVCTKIT - R860 Biomed tool kit
    Buy Together

Product Overview

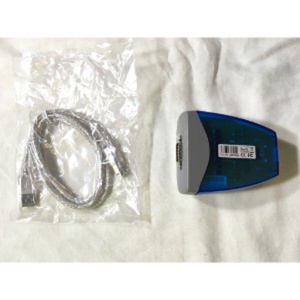

This USB to RS-422/RS-485 Converter Tool consists of a USB to RS-422/RS-485 Adapter and a USB Type A to Type B cable. The converter is housed in a strong plastic enclosure designed for use in rugged application areas. It adds a Windows serial Com port via it's USB connection and can be configured to work with RS-422 and RS-485 peripherals. USB Plug and Play allows easy serial port expansion. The adapter features a full set of RS-422 / 485 data and control signals (TX-, TX+, RX+, RX-, GND, RTS-, RTS+, CTS+, CTS-) on it's DB9 male connector. It supports data transfer rates of up to 1M bps and does not require an external power supply as it takes power from the USB bus. The serial line of RS-422/485 port is optically isolated with 2000 volt DC optical isolation. The adapter has built-in surge protection to withstand electrostatic discharge and power surges up to 25KV ESD. This adapter is RoHS Compliant and can be used with Engstrom, CARESCAPE R860 and Engstrom Carestation systems.

  • Additional Features

    • One DB9 male connector
    • Full hardware and software flow control
    • Powered by USB port

    Compatible Products

    Engstrom

    Engstrom

    CARESCAPE R860

    CARESCAPE R860

    Engstrom Carestation

    Engstrom Carestation
