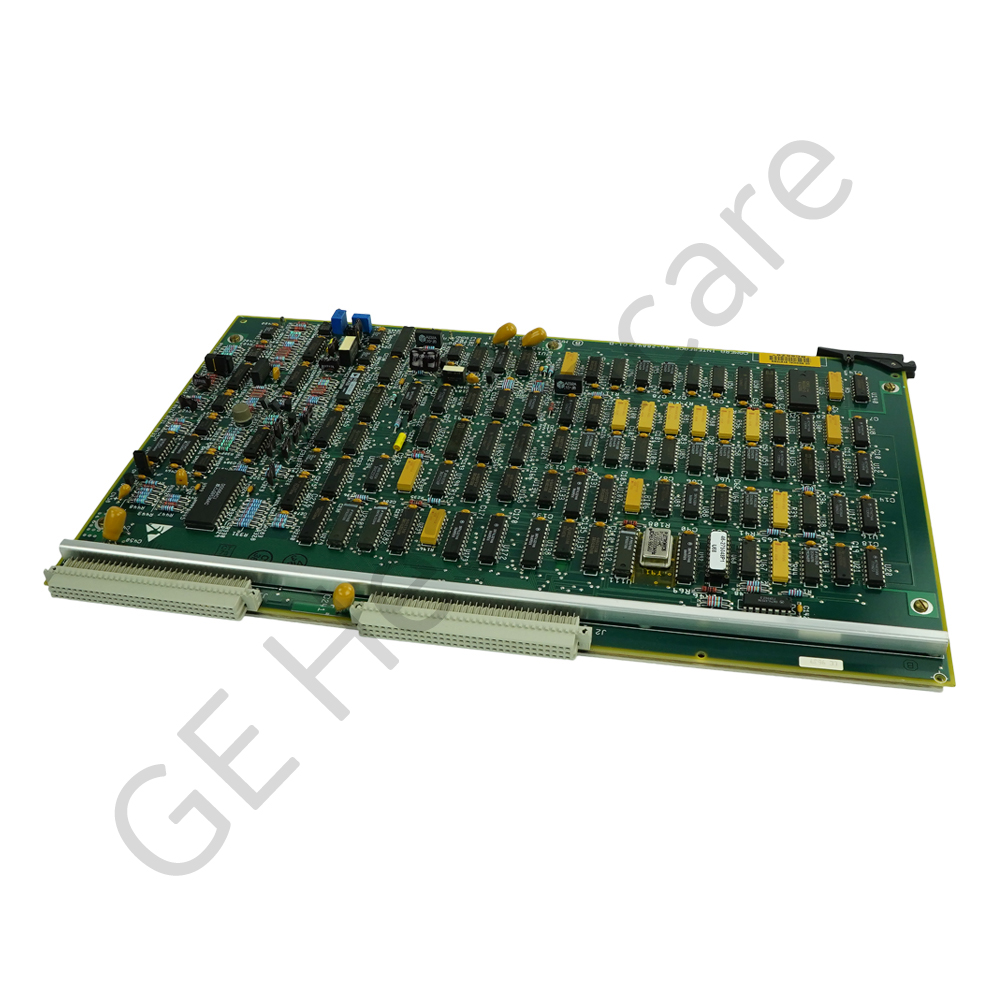

Camera Interface Board Assembly

46-288422G1
46-232760G1 46-232760G2
New
Interventional Image Guided Systems
GE Healthcare
GE Healthcare
GE Healthcare
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Dimensionally stable
  • Increased life span
  • Low environmental impact
  • Enhanced durability

Other Buying Options


Condition: Used

Product Overview

The Camera Interface Board Assembly is used in the interventional image guided systems. The camera interface board is the communication interface between the CPU and the camera electronics. This allows the camera to be software controlled and monitored. The interface board also provides the window signal which allows the video to be averaged within a particular area. The main function of the board is to provide an interface between the 80188 processor-board of the VIC module and TV electronics. The interface is to enable the camera to be controlled and diagnosed via software. The board has the generation of the Automatic Brightness Correction (ABC) window signal so the average brightness of the image within a certain area. The interrupt buffer is automatically cleared when it is read it for the next interrupt. The A/D circuitry consists of a 16–Channel analog multiplexer, an internal/external switch, an 8 – bit A/D converter and an assortment of timing and selecting circuitry. The A/D converter can operate in a unipolar mode in which the signal ranges from -5 to +5 VDC. The input signal to the multiplexer or mux includes the outputs of the D/A converters, power supplies, four external signals and DC signals representing the duty cycle of the horizontal and vertical ABC window signals. The product is securely packaged inside a high quality packing box to avoid physical damage during transit. It is used in a wide range of medical equipment such as Advantx LUC/LP Digital, Lightspeed QX/I and other medical diagnostic imaging equipment.

  • Additional Features

    • Easily portable
    • Lightweight
    • High performance
    • It consumes less power
    • Accurate and sensitive
    • Easy to use
    • Low maintenance required
    • Reliable and durable
    • RoHS compliant

    Equivalent Part :

    Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

    Equivalent partPart Details
    46-232760G1 No description provided
    46-232760G2 CAMERA INTERFACE BOARD FIRST USED IN MODEL PERIOD 8
