ARETHA LOGIC/RELAY INTERFACE BOARD 2294005-H
2294005-H
Used
Ultrasound
LOGIQ M2
GE Healthcare
GE Healthcare
GE Healthcare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Controls power to all peripherals of the Aretha system during Standby, Off and ON state
  • Controls the operation of the UPS
  • Provides diagnostic Signals from the UPS
  • Reliable and durable

Other Buying Options


Condition: New

Product Overview

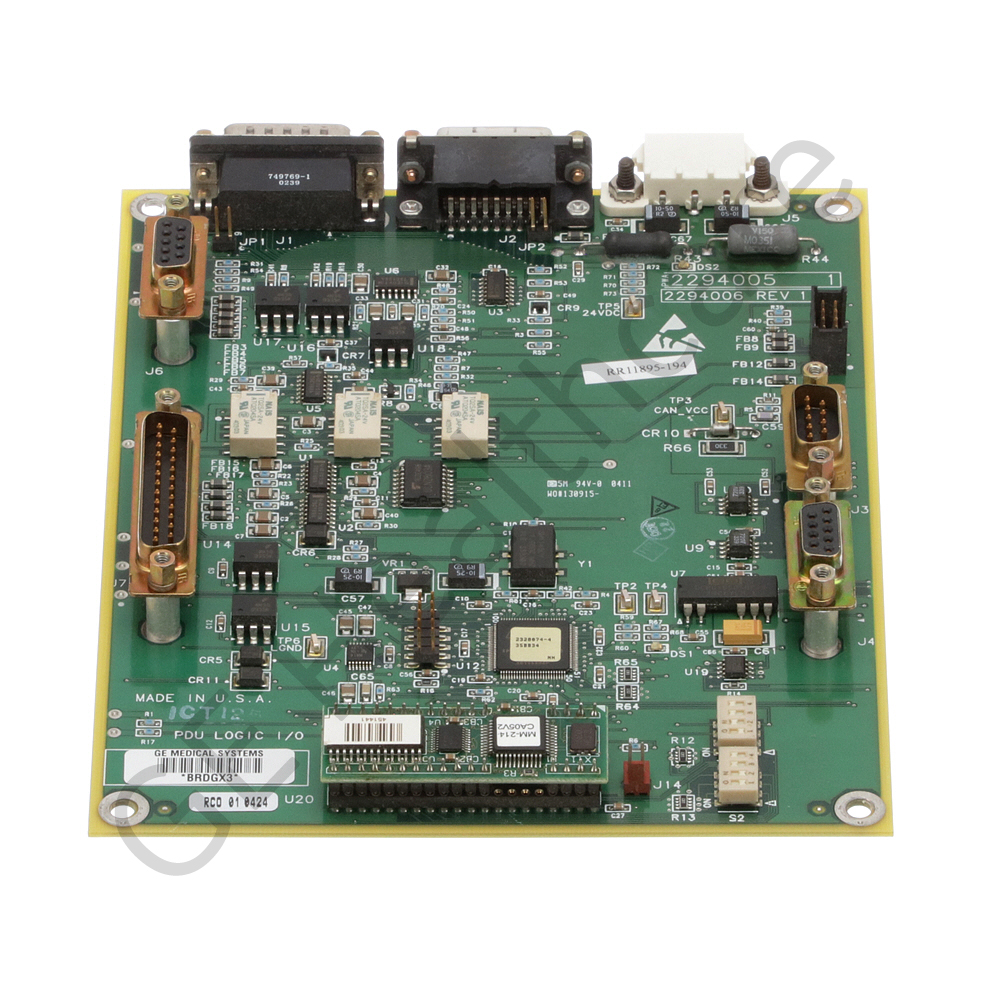

  • The Aretha logic/relay interface board comes as a part of the Aretha system cabinet. It is a Printed Wire Assembly (PWA) for the Power Distribution Unit (PDU) of the unit. The circuit board has a 40-pin DIP CANopen-505 chip and a 100-pin TQFP FPGA on it. The board communicates via the CAN bus to the Mars PC and via discrete Signals to the relays inside the PDU and also the UPS. It also controls the UPS via the relay IO module (Relay IO module is a card that gets plugged in at the back of the UPS). The interface board is essential to provide control Signals to transfer between the three different states (On, Off and Standby). The board also re-cycles power when the reset button is pressed. It controls room interface Signals like ON light, Room light and Room door interlock.

  • Additional Features

    • Field Replaceable Unit (FRU)-Can be removed and replaced quickly and easily
    • Provided in a protective package to avoid the damage due to shipping or rubbing during transit

    Compatible Products

    LOGIQ M2

    LOGIQ M2

    Precision 500D

    Precision 500D

    Robust, digital performance at an efficient dose
    It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.

    Return And Exchange

    GE Healthcare will accept, for return from customer, items that are in new condition, unworn, unaltered and free of damage. Items cannot be returned or exchanged beyond 30 days from customer’s receipt of the original order and all returned items will be subject to a 15% restocking fee. To obtain a full refund or exchange of the item within the 30 day return period (subject to the 15% restocking fee) customer must request a return materials authorization (RMA) from GE Healthcare and return the item to GE Healthcare utilizing this RMA number. Items must be returned in the original packaging, unused and free of damage.

    Please note, cuffs, BP items and hazmat items cannot be returned. If a replacement order is requested, the restocking fee may be waived at GE Healthcare’s sole discretion.
