ARETHA LOGIC/RELAY INTERFACE BOARD


Item No.	2294005-H
Condition	Used
Product Category	X-Ray
Manufacturer	GE HealthCare
Vendor For Invoicing	GE HealthCare
Seller	GE HealthCare
Manufacturer Part No.	N/A
Purchase Type	Outright

One Time Order

Auto Reorder

Add to Wish List

Sign In & Add To Cart

Please select date

Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Features

Controls power to all peripherals of the Aretha system during Standby, Off and ON state
Controls the operation of the UPS
Provides diagnostic Signals from the UPS
Reliable and durable

GE HealthCare Service Shop
Part Warranty Statement

      Part Warranty (excluding Specialty Components as defined below).

1.1.  GE HealthCare Parts. Each GE HealthCare part will be free from defects in material and workmanship under normal use and service, and will perform substantially in accordance with GE HealthCare’s written specifications (as they exist on the date the part is shipped)for a period of 120 days for new, refurbished and repaired parts, and 90 days for harvested/used parts, starting on the delivery date of the part.

1.2.  Non-GE HealthCare Parts. Each non-GE HealthCare part will be free from defects in material under normal use and service for a period of 90 days for new, refurbished and repaired parts, and 30 days for used parts, starting on the delivery date of the part.

Specialty Component Warranty.

2.1. GE HealthCare Specialty Components. Each GE HealthCare detector, probe, tube or image intensifier ("Specialty Component") will be free from defects in material and workmanship under normal use and service, and will perform substantially in accordance with GE HealthCare’s written specifications (as they exist on the date the Specialty Component is shipped) for the time-period identified in the table below starting on the delivery date of the Specialty Component.

2.2. Non-GE HealthCare Specialty Components. Each non-GE HealthCare Specialty Component will be free from defects in material under normal use and service for the time-period identified in the table below starting on the delivery date of the Specialty Component.

Specialty Component	Full New/Refurbished/Repaired Part Warranty (a)	Pro-Rata New/Refurbished/Repaired Part Warranty (b)	Used/Harvested Part Warranty
GE HealthCare X-Ray & Vascular Tubes Radiographic, Radiographic & Fluoroscopic, Vascular Mammographic, Bone Mineral Densitometry, Infinia Hawkeye MX150 Vascular, Performix™ 160A (MX160) Non-GE HealthCare Tubes	30 days 30 days 12 months 90 days	24 months 12 months N/A N/A	30 days 30 days 90 days 60 days
GE HealthCare Image Intensifier Tubes Non-GE HealthCare Image Intensifier Tubes	30 days 90 days	24 months N/A	30 days 60 days
GE HealthCare CT Tubes Performix™and Solarix branded tubes Plus branded tubes Quantix branded tubes MAXIRay™ branded Tubes Non-GE HealthCare CT Tubes	12 months 24 months 12 months or 10,000 exams* 12 months or 6,000 exams* 90 days	N/A N/A N/A N/A N/A	90 days 90 days 90 days N/A 60 days
GE HealthCare Detectors Fixed Digital Detectors (XR, Vascular, Mammography), Wireless & Tethered Digital Detectors Non-GE HealthCare Detectors	12 months 90 days	N/A N/A	90 days 60 days
GE HealthCare Ultrasound Probes ** Purchased Probe Loaner Non-GE HealthCare Ultrasound Probes	12 months 6 months 90 days	N/A N/A N/A	90 days N/A 30 days

* The first to occur

** Refurbished/Repaired GE HealthCare Ultrasound Probes include a 6-month warranty and no Pro Rata warranty allowance

(a) The period following start of warranty during which a 100% warranty is provided.

(b) The maximum period during which a Pro Rata warranty allowance is provided. The Pro Rata warranty allowance is calculated as:

number of months between date of warranty commencement and date of failure

100%

complete warranty period

Customer must pay the then-current price of the Specialty Component replacement less the Pro Rata warranty allowance (a fraction of a month less than 15 days will be disregarded, and a fraction of a month equal to or greater than 15 days will be regarded as a full month).

Remedy. If Customer promptly notifies GE HealthCare of its claim during the warranty and makes the part or Specialty Component available, GE HealthCare will (at its option and subject to the foregoing terms) repair, adjust or replace (with new or refurbished/repaired) the non-conforming part or Specialty Component. The warranty for a part or a Specialty Component provided to correct a warranty failure is the unexpired term of the warranty for the repaired or replaced part or Specialty Component. If an exchange part or Specialty Component is provided, the original becomes GE HealthCare property and Customer must return it to GE HealthCare within a reasonable timeframe of replacement to avoid being billed for the non-returned part or Specialty Component. NO OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WILL APPLY.
Limitation. GE HealthCare has no obligation to Customer for warranty claims if Customer uses the part or Specialty Component: (a) for non-medical or entertainment use or outside the United States; (b) in combination with any software, hardware or services not recommended in writing by GE HealthCare; and (c) in a manner or environment for which GE HealthCare did not design or license it, or in violation of GE HealthCare’s recommendations or instructions. Warranty service does not include installation. In addition, the warranty does not cover: (i) defects or deficiencies from improper storage or handling, maintenance or use that does not conform to OEM specifications (e.g., accidental damage, improper cleaning, disinfecting, TEE bite marks), inadequate back-up or virus protection, cyber-attacks, or failure to maintain power quality, grounding, temperature and humidity within OEM specifications; (ii) repairs due to power anomalies or any cause external to the part or Specialty Component or beyond GE HealthCare’s control; (iii) payment or reimbursement of facility costs arising from repair or replacement of the part or Specialty Component; (iv) planned maintenance, adjustment, alignment, or calibration; (v) lost or stolen parts or Specialty Components; (vi) parts and Specialty Components with serial numbers altered, defaced or removed; (vii) modification of the part or Specialty Component not approved in writing by GE HealthCare; and (viii) parts or Specialty Components immersed in liquid.

Product Overview

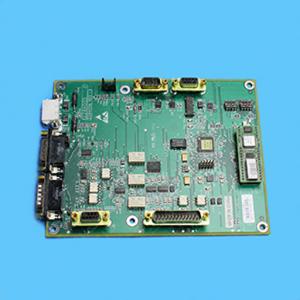

The Aretha logic/relay interface board comes as a part of the Aretha system cabinet. It is a Printed Wire Assembly (PWA) for the Power Distribution Unit (PDU) of the unit. The circuit board has a 40-pin DIP CANopen-505 chip and a 100-pin TQFP FPGA on it. The board communicates via the CAN bus to the Mars PC and via discrete Signals to the relays inside the PDU and also the UPS. It also controls the UPS via the relay IO module (Relay IO module is a card that gets plugged in at the back of the UPS). The interface board is essential to provide control Signals to transfer between the three different states (On, Off and Standby). The board also re-cycles power when the reset button is pressed. It controls room interface Signals like ON light, Room light and Room door interlock.

Additional Features

Field Replaceable Unit (FRU)-Can be removed and replaced quickly and easily

Provided in a protective package to avoid the damage due to shipping or rubbing during transit

Compatible Products

LOGIQ M2

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
