Seal Overpressure Valve Breathing Circuit Gas (BCG)

1503-3016-000
New
GE HealthCare
Datex-Ohmeda
GE HealthCare
N/A
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Confines to international standards like Gas Association CGA. 1-1985, American Society for Testing and Materials Standard G93-1988 and British Oxygen Company Handbook of Cleaning using Non-Ozone Depleting Agents-1994
  • Does not contain any dust, dirt, oils, grease, lint, fibers, paper, rust, chips, cleaning solutions, machining coolants and other foreign material
  • Complies with RMA A2-F3-T.032 (T 0.80 mm)
  • Does not contain Cadmium (Cd) more than 0.01% by weight and Lead (Pb), Mercury (Hg), Hexavalent Chromium, Poly Brominated Biphenyl (PBB) and Poly Brominated Diphenyl Ethers (PBDE) more than 0.1% by weight

Product Overview

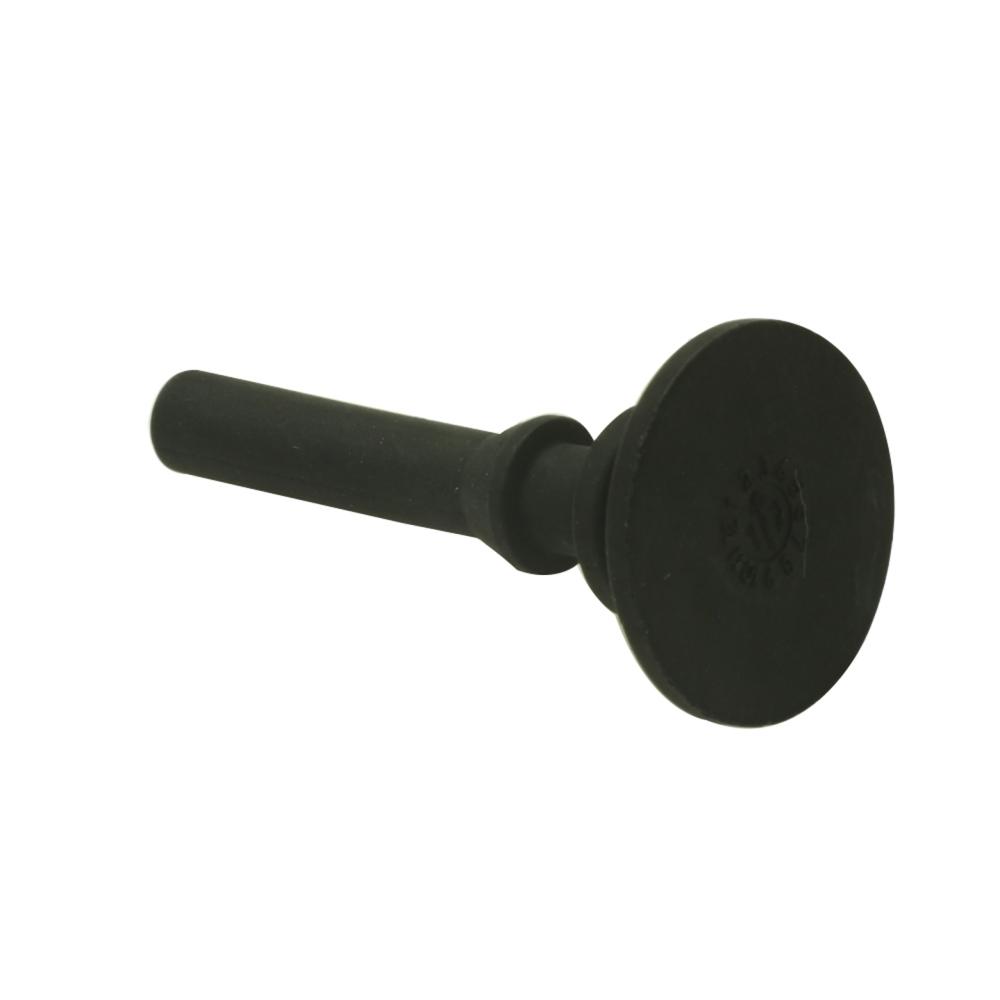

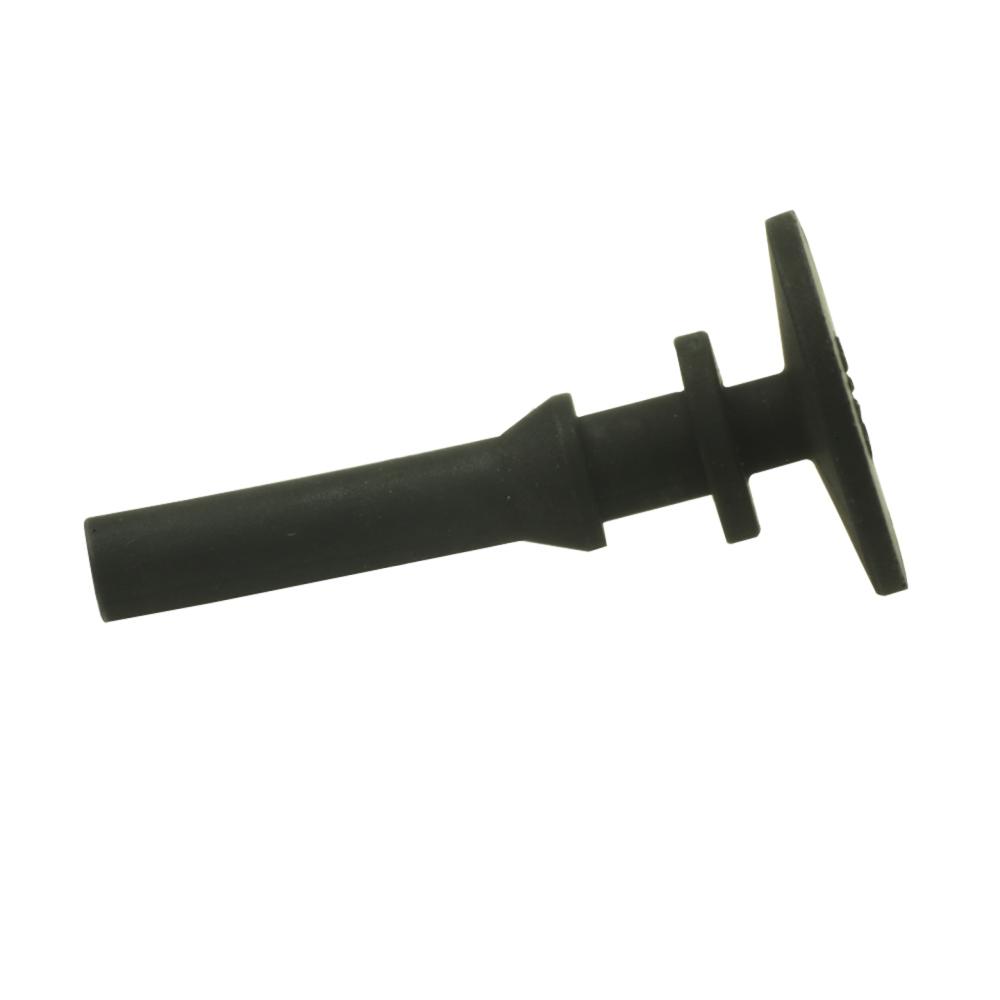

The Seal comes as a part of the Mechanical Overpressure Valve (MOPV) module in the Breathing Circuit Gas (BCG) of an anesthesia delivery machine. The MOPV is a mechanical valve that operates regardless of electrical power on or off. It functions as a third level of redundancy to the ventilator's pressure limit control functions, supplying pressure relief. It also functions as a backup in the event of a complete blockage of the exhalation valve system, relieving circuit pressure under failure conditions. The seal is present inside the weight placed in the valve assembly. It seals the gases avoiding leakage. It comes into contact with gases, where the pressure is less than 300 psi. It is corrosion resistant, despite these conditions and hence is highly efficient to use in medical environments.

  • Additional Features

    • Durable and reliable
    • ROHS compliant
