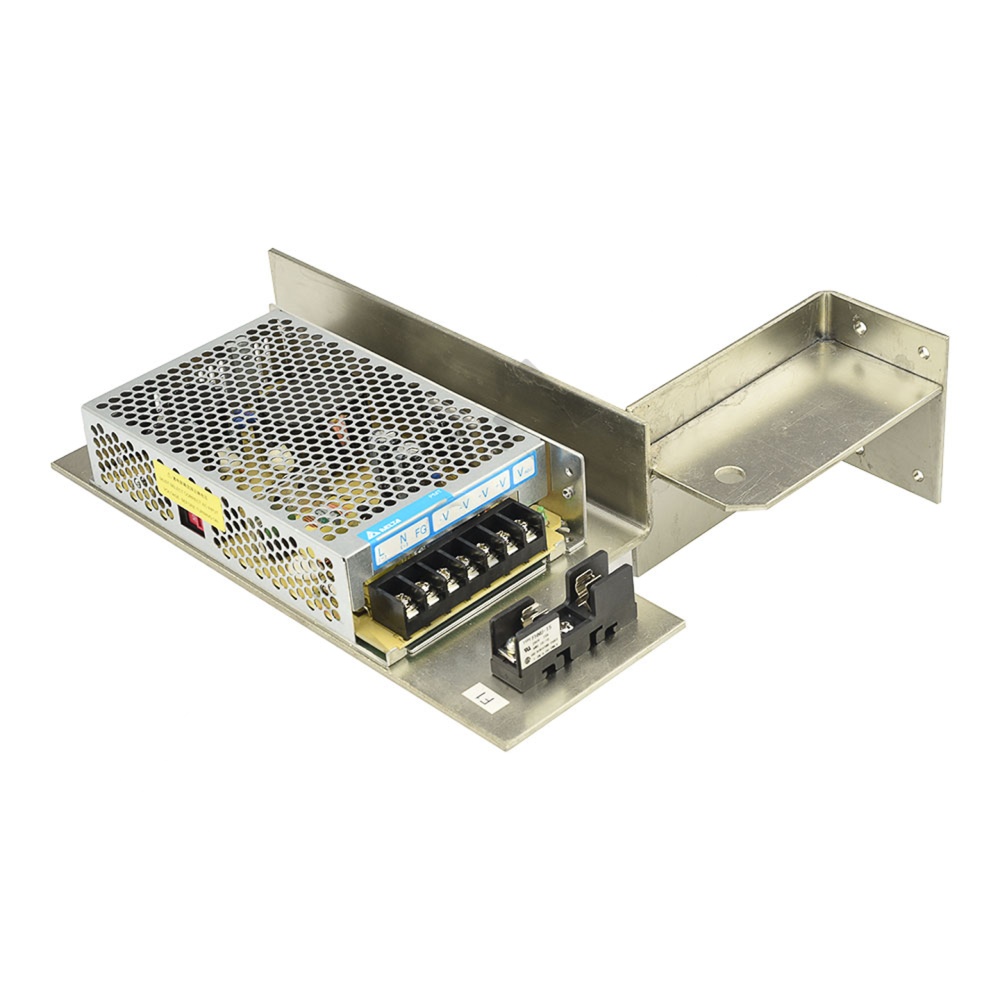

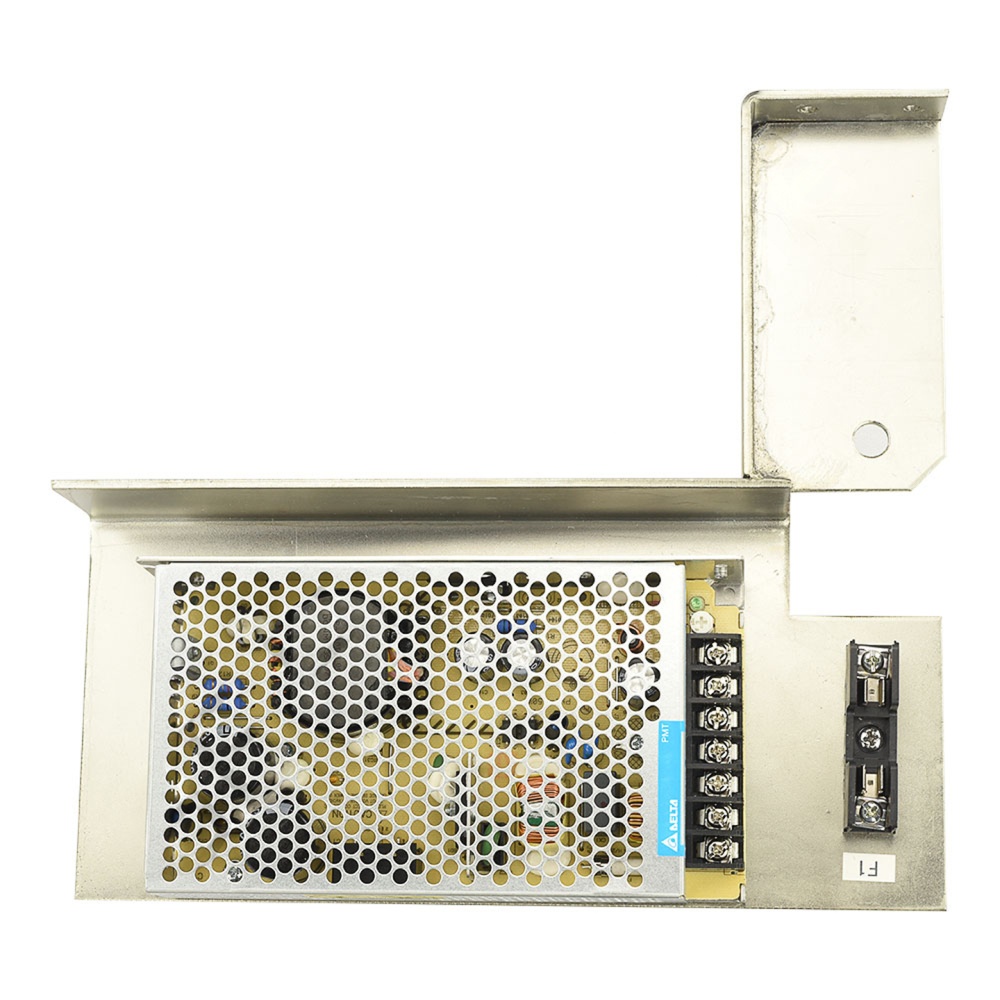

24V 150W Switching Power Supply Assembly 611-3022-H

611-3022-H
Used
X-Ray
GE HealthCare
GE HealthCare
GE HealthCare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Enclosed Power Supply

Other Buying Options


Condition: New

Product Overview

This is a specially designed low voltage power supply module which converts AC input voltage into DC voltage. It is an enclosed, 156W continuous output power supply with +24 VDC output. The power supply accepts input 90-132Vac or 180-264Vac. This switch mode power supply is approved to domestic and international regulatory standards. This single output AC-DC power supply is packaged in an industry standard 178 x 97 x 38 mm package and maintians very low earth leakage currents, making them suitable for a wide range of medical applications. The product offers a wide operating temperature range from -10°C to +70°C and can withstand shock and vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). The power supplies are fully protected against short circuit, overload, over temperature and over voltage. The power supply is attached to a mounting bracket. This assembly is compatible to be used with Proteus XRA X-Ray System. 611-3022-H

  • Additional Features

    • Terminal Block For Output
    • Fully regulated output
    • Wide operating temperature range from -10°C to +70°C
    • Over voltage/overload protection
    • Convection Cooling
