Logiq S7 TGC Assembly

5455115
New
Ultrasound
Other Ultrasound
GE Healthcare
GE Healthcare
GE Healthcare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • 8 Slide Potentiometers (POT)
  • With Wires and Connector
  • Easy to Mount with 4x Screws
  • Lightweight

Product Overview

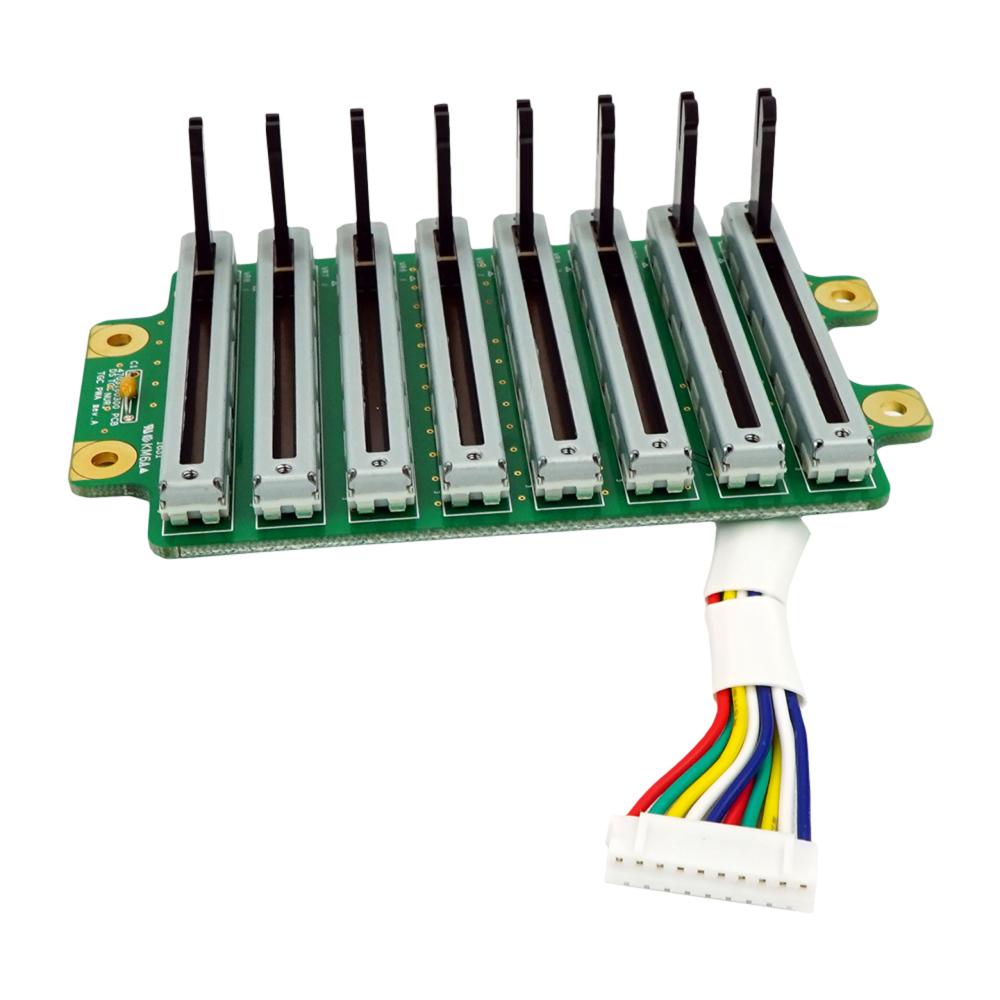

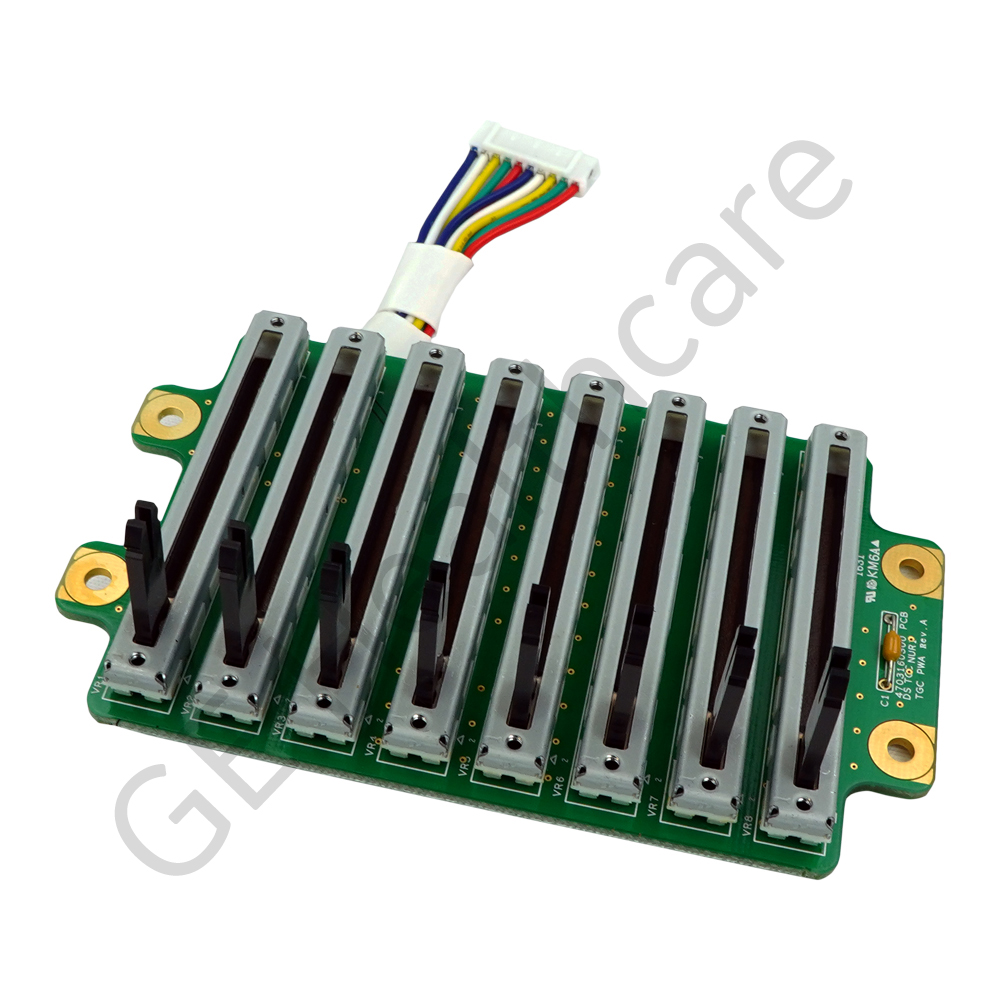

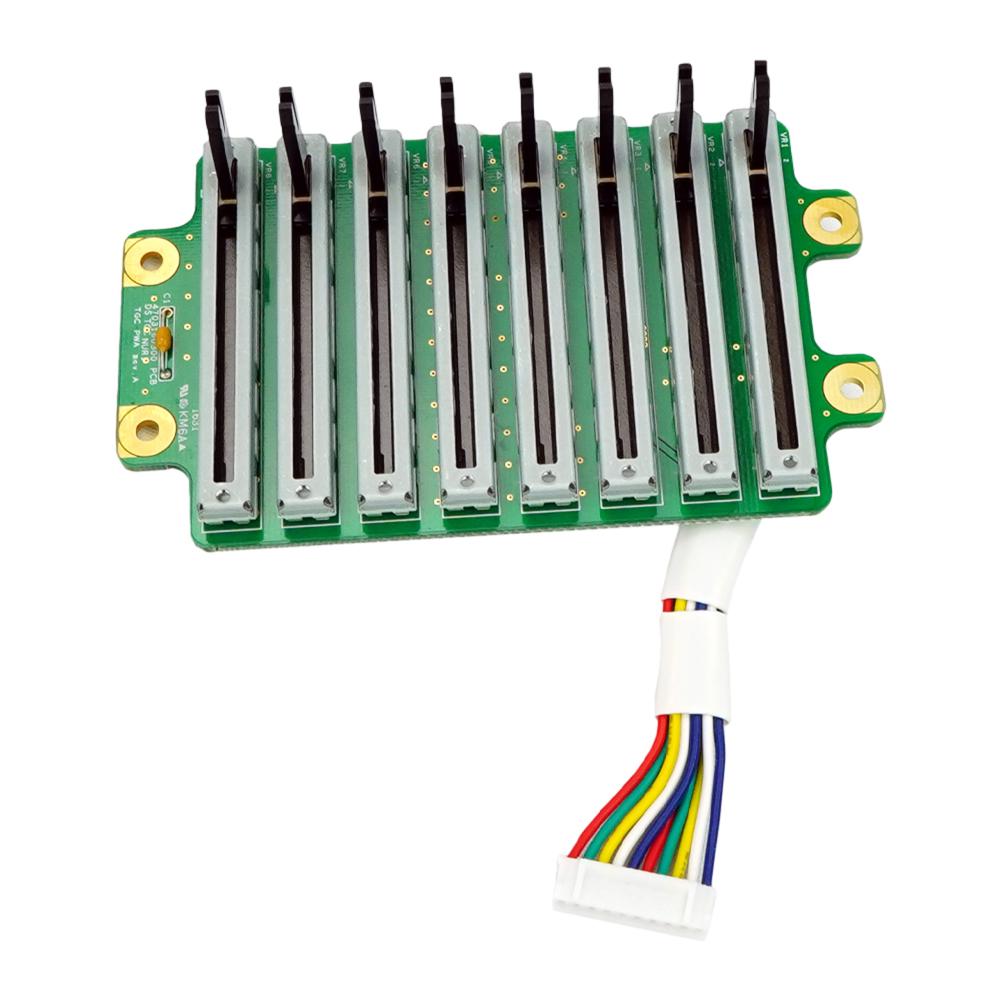

A Time Gain Compensation (TGC) assembly is part of an operator panel of Ultrasound Imaging machines. The kit consists of a circuit board with 8 slide Potentiometers (POT) and a TGC wire assembly. All sliding Potentiometers on the board have maximum travel length of 45 mm and are used to compensate various pre-defined parameters on the ultrasound machines. The assembly is provided with a Time Gain Compensation (TCG) board to Hub board cable that includes 10 wires and 10 pin wire to board connector. It can be mounted on the operator panel upper assembly with four screws and four pre-drilled holes. The assembly is RoHS compliant and is used with GE's Logiq S7 Ultrasound Imaging Systems.

  • Additional Features

    • Reliable Operation
    • Enhanced durability
    • RoHS Compliant
