RCIM2 to Wall box Cable

5220439
New
X-Ray
GE Healthcare
GE Healthcare
GE Healthcare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Easy to connect and disconnect
  • Robust and durable cable
  • D-Sub connector for solid and reliable connection
  • Twisted pairs reduce crosstalk for balanced drive applications

Product Overview

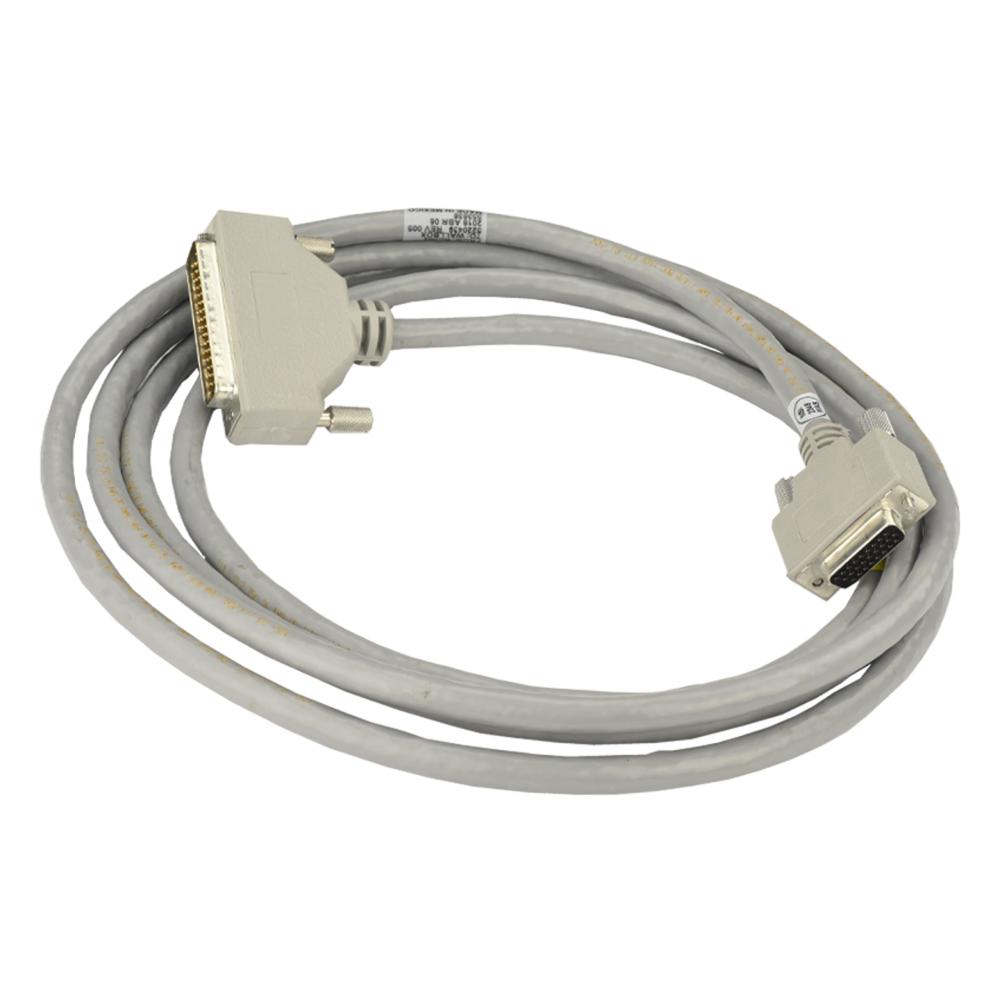

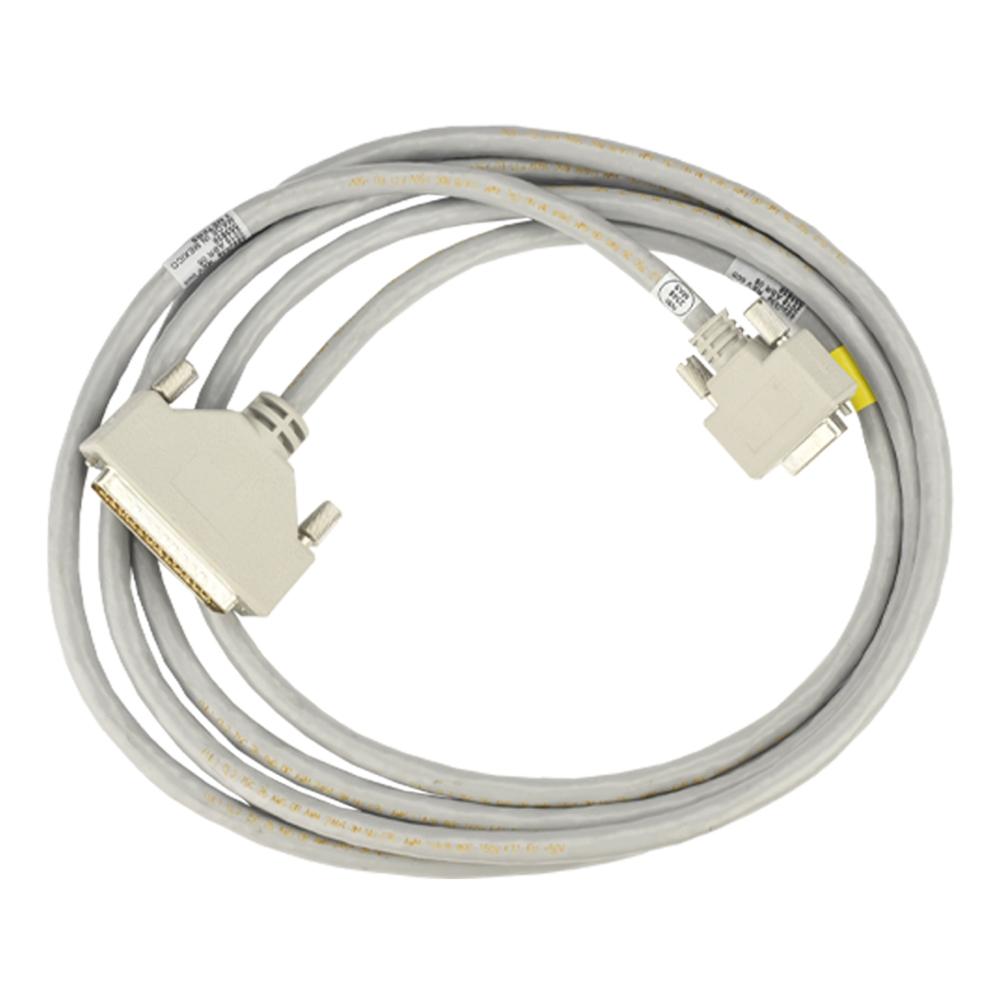

This cable assembly is used in the X-Ray System. It comprises of 50 position D-sub connector at one end and 26 position D-sub connector at the other end. Both the connectors comes with over mold and jack screws. D-Sub Connectors are electrical connectors with two or more parallel rows of pins or sockets surrounded by a D-shaped metal shield that screens against some electromagnetic interference, provides mechanical support, and ensures correct orientation. The 26 AWG wire gauge cable is a multi-pair, stranded and twisted pair jacketed with polyvinyl chloride which has resistance against the chemical or electrolytic corrosion, fire resisting qualities due to their resilient sheath and is unaffected by moisture. This cable assembly is compatible with Definium 8000,Discovery XR656, Definium 6000, Optima XR646 and Optima XR648 X-Ray System.

  • Additional Features

    • 26 AWG wire carries higher power levels in input-output harness
    • D-sub are available with shielding over mold hardware and shielding enclosure kits
    • RoHS Compliant

    Compatible Products

    Definium 8000

    Definium 8000

    Precision 500D

    Precision 500D

    Robust, digital performance at an efficient dose
    It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
