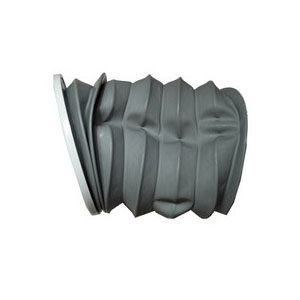

Bellows Sub Assembly - Adult ABA with Disk-Ring-Bumpers BCG

1500-3378-000
0229-1013-700
New
Anesthesia Delivery
GE Healthcare
Datex-Ohmeda
GE Healthcare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good chemical stability
  • Flexible over a wide temperature range
  • Less thickness
  • Lightweight and compact



Featured Bundles

  • Aestiva MRI Bundle with Disposable Flow Sensor ABS
    Buy Together
  • Aestiva MRI Bundle with Autoclaveable Flow Sensor ABS
    Buy Together
  • Aisys, Avance, Aespire Bundle with Disposable Flow Sensor ABS
    Buy Together
  • Aisys, Avance, Aespire Bundle with Autoclaveable Flow Sensor
    Buy Together
  • Carestation 600 Series Bundle with Autoclaveable Flow Sensor
    Buy Together

Product Overview

The Bellows Sub Assembly - Adult ABA with Disk-Ring-Bumpers BCG is used in an anesthesia delivery system, which provides a sophisticated ascending bellows type ventilation. This system helps by taking in ambient air, which can be enriched with oxygen from a cylinder. The bellow assembly contains bellows snapped to a disk, molded in stress and with bumpers, making it robust. The bellows filled with anesthetic gases are placed in a rigid plastic outer chamber. A pressurized gas is routed between bellows and its outer plastic chamber. This compresses the bellows and the anesthetic gases available inside bellows are delivered into the patient through a breathing system thus forming a dual circuit. The ascending bellow usage makes the bellow assembly as well as the entire anesthesia delivery system safe since because if a circuit disconnection occurs, the bellows will not fill.

  • Additional Features

    • Robust bumpers made of silicone
    • Resistant to solvents
    • Does not contain grease, oil, mold release, dust lint or other contamination
    • Easy removal of dust in bellow housing with KRYTOX® lubricant
    • Autoclavable parts
    • RoHS compliant

    Compatible Products

    Aespire WU_0039

    Aespire WU_0039

    Aestiva WU_0042

    Aestiva WU_0042

    Avance

    Avance

    Aisys

    Aisys

    7800 Ventilator (IEC)

    7800 Ventilator (IEC)

    Modulus CD

    Modulus CD

    7800 Ventilator (non-IEC)

    7800 Ventilator (non-IEC)

    Equivalent Part :

    Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

    Equivalent partPart Details
    0229-1013-700 BELLOWS ASSY ADULT OHIO 7000 ELEC FH91341401
