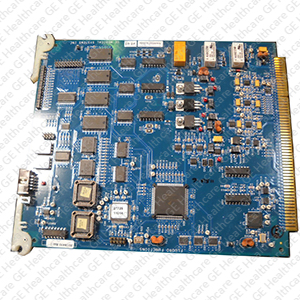

Fluoro Functions PCB
5318470FS
00-879101-01 00-879101-02 00-879101-03 00-879101-04 99-879101-04
New
OEC Mobile C-Arms
GE Healthcare
OEC Medical Systems
GE Healthcare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Three Independent Communication Channels
  • Two LED's for displaying status information
  • Radio Frequency Interference (RFI) Filters on inputs
  • Output port for diagnostic purpose

Product Overview

The primary purpose of the Fluoro Functions PCB (Printed Circuit Board) is to provide servo control of the camera and collimator motor axis. The board monitors the position and controls the direction and speed of each axis. In addition, a spare channel is provided in anticipation of the development of a colliamator with independent shutter leaves. The board also provides X-Ray field size selection, allowing the user to select between small, medium and normal fields. It has three independent communication channels: ARCNET channel for communicating with controllers, RS422 for control panel prcessor and uni-directional Manchester Encoder Serial communication link for sending commands to CCD camera. This board fits easily into an EMI shielded card cage and comes with RFI filters on all incoming power sources and oscillator pins to minimize interference. This Fluoro Functions board is used with OEC 9800 (12 inch and 9 inch) and OEC 900 Elite (12 inch and 9 inch) systems.

  • Additional Features

    • Compact Size
    • Reliable performance
    • RoHS Compliant

    Compatible Products

    OEC 9800 12ΓÇ¥ II C-arm

    OEC 9800 12ΓÇ¥ II C-arm

    OEC 9900 Elite 12ΓÇ¥ II C-arm

    OEC 9900 Elite 12ΓÇ¥ II C-arm

    OEC 9800 9ΓÇ¥ II C-arm

    OEC 9800 9ΓÇ¥ II C-arm

    OEC 9900 Elite 9ΓÇ¥ II C-arm

    OEC 9900 Elite 9ΓÇ¥ II C-arm

    Equivalent Part :

    Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

    Equivalent partPart Details
    00-879101-01 ASM, PCB, FLUORO FUNCTIONS
    00-879101-02

    ASM, PCB, FLUORO FUNCTIONS 00-879101-02

    00-879101-03

    ASM, PCB, FLUORO FUNCTIONS 00-879101-03

    00-879101-04
    • Assembly Printed Circuit Board Flouro Function
    • <
    99-879101-04

    REAPIR Printed Circuit Board (PCB) FLUORO FUNC C/REWRK 98
